sistem kontrol loop otomatis untuk proyek pencahayaan LED terowongan jalan raya pintar.

ituCH -h0102 loop controller diteliti dan dikembangkan secara independen oleh perusahaan kami. mengontrol catu daya perlengkapan pencahayaan melalui antarmuka manusia-mesin dan memantau keadaan tertutup loop catu daya sirkuit , yang banyak digunakan untuk dia lampu jalan raya dan terowongan Petir, dan pencahayaan industri seperti led high bay light & low bay light di gudang dan proyek pencahayaan pabrik.

peralatan mengadopsi teknologi RS485 bus industri standar , jarak komunikasi dapat mencapai 2 000 meter s tanpa re peter dan jangkauan visibilitas; 7 tingkats dari re peter dapat diatur dalam adegan , dan jarak maksimum dapat mencapai 7 000 meter s menurut perhitungan 1 000m eters untuk setiap tingkat re pemakan .

Merek:
SOWIN
Item no.:
CH-L0102
Pesanan (MOQ):
1
Pembayaran:
T/T
Asal produk:
China
Warna:
Gray
Lead time.：
3 weeks

Pertanyaan sekarang

Rincian produk

saya: spesifikasi

ituCH -h0102 pengontrol lingkaran diteliti dan dikembangkan secara independen oleh perusahaan kami. ia mengontrol catu daya perlengkapan pencahayaan melalui antarmuka manusia-mesin dan memantau keadaan tertutup loop catu daya sirkuit , yang banyak digunakan untuk dia penerangan jalan terowongan Petir, dan penerangan industri seperti gudang dan proyek pabrik.

I saya: parameter

barang	peringkat
tegangan kerja	dc12v
kekuatan statis	<2W
saklar loop keluaran qty. maks	1 sirkuit lingkaran
kontrolC sekarangPerL oop（resistifL oad	5 a（maks
suhu kerja normal	-25℃～+60
suhu kerja terbatas	-40℃~+65℃
penyimpanan dan suhu transportasi. kisaran	-45℃～+65℃
penyimpanan dan bekerja kisaran kelembaban	85%

iii: spesifikasi fungsi

1. atasT erminalD deskripsi

terminal	tanda	fungsi
01	gnd	catu daya dc-
02	VCC	catu daya dc+
03	485a2	disimpan
04	a85b2	disimpan
05	485a1	rs485 port komunikasi a1
06	485b1	rs485 port komunikasi b1

2. lebih rendahT erminalD deskripsi

terminal	tanda	F spesifikasi unctions
01	U-i	lingkaranP ower (acC kontrol ontactor) hidup- aku nput
02	u-o	lingkaranP ower (acC kontrol ontactor) hidup - keluar taruh
03	K -di dalam	input kabel input digital
04	com	kabel keluaran digital-umum

3. deskripsi tombol

n/m	nama	Deskripsi fungsi
01	manual/otomatis	manual / otomatisS tombol sakelar tate , tekan untuk meraihM tahunan danA perubahan keadaan otomatis ing
02	hidup/mati	ketika di bawah ituM tahunanS tate : tekan tombol ini untuk mengganti status loop, yaitu mengatakan: untuk beralih antara tertutup dan terbukan negara.

4. fungsi komunikasi

perangkat ini memiliki saluran komunikasi RS485.

sebuah keuntungannya adalah sebagai berikut:

A. kapasitas perangkat di gateway mencapai 255 unit.

b. st anti-interferensi yang kuat: bagian kabelnya adalah bus industri, dengan anti-interferensi yang kuat.

5. beralih fungsi

perangkat berisi relai , yang melaluinya kontrol sakelar dari loop arus kecil dapat direalisasikan , atau acC ontactor dapat dikontrol melalui relai ini untuk mewujudkan kontrol sakelar dari loop arus besar .

6. fungsi deteksi keluaran digital

kontak deteksi kontaktor AC dapat dihubungkan ke port deteksi sinyal sakelar perangkat untuk memantau apakah rangkaian catu daya dibuka dan ditutup secara normal.

iv: dimensi

1. ukuran

05mm * 23mm * 59mm

2. mode pemasangan

pemasangan dengan kereta api.

Tinggalkan pesan

Jika Anda tertarik dengan produk kami dan ingin mengetahui lebih detail, silakan tinggalkan pesan di sini, kami akan membalas Anda sesegera mungkin.

Tag terkait. :

Produk-produk terkait

proyek penerangan jalan cerdas cina sistem manajemen kontrol pemantauan jarak jauh

ituCH-L 0101 loop controller dikembangkan secara independen oleh perusahaan kami. ditujukan untuk penerangan industri untuk gudang dan pabrik, bangunan , stasiun , dan sistem kontrol pencahayaan terowongan pintar , dll . , untuk mengontrol catu daya perlengkapan pencahayaan melalui antarmuka manusia-mesin , untuk mengumpulkan data dan memantau status loop catu daya. yang paling diuntungkan untuk sistem peredupan loop adalah menghemat banyak pengontrol lampu individu pada setiap perlengkapan pencahayaan, cukup sesuaikan semua lampu' kecerahan dengan kotak catu daya pengontrol terpusat, kabin distribusi juga dapat dihubungkan dengan sensor gerak atau sensor penerangan untuk menjamin manajemen penghematan daya yang paling efektif.

aplikasi online web penerangan jalan pintar oleh panel sirkuit kontrol loop

pengontrol loop terpusat CH-J106 dikembangkan secara independen oleh perusahaan kami. ditujukan untuk jalan raya, terowongan,penerangan industri untuk gudang dan pabrik,bangunan dan stasiun, dll., untuk mengontrol catu daya pencahayaan perlengkapan melalui antarmuka manusia-mesin, untuk mengumpulkan data dan memantau status perlengkapan pencahayaan.

Smart Hybrid Solar LED Street Light with Battery Backup and Low-Tariff Nighttime Grid Charging

Key Features: To prevent theft and vandalism, GPS positioning allows for real-time tracking of stolen street light. Hybrid AC & Solar Power or Pure Solar Power 4G/5G Sim Card CAT 1 Communication Technology (Hybrid PLC / LoRa /LoRaMesh) Auto-change Solar to AC by Smart Detect Sensor within 3 seconds Hybrid Solar–AC LED Street Light with Battery Storage and Off-Peak Grid Charging. Solar-Grid Hybrid LED Street Lighting System with Intelligent Peak-Valley Power Management. Smart Hybrid Solar LED Street Light with Battery Backup and Low-Tariff Nighttime Grid Charging. High-Efficiency Hybrid Solar LED Street Lighting with AC Charging During Off-Peak Hours. Next-Generation Solar–AC Hybrid LED Street Light with Adaptive Energy Optimization.

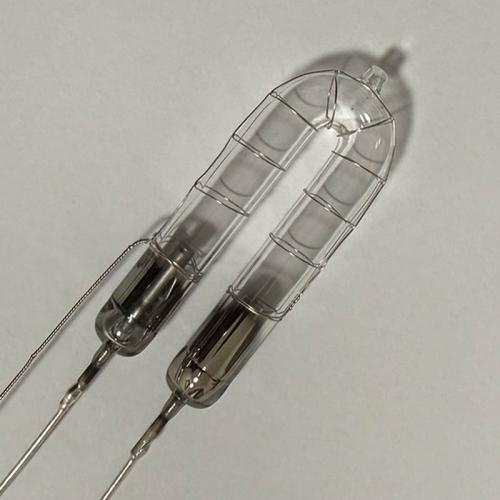

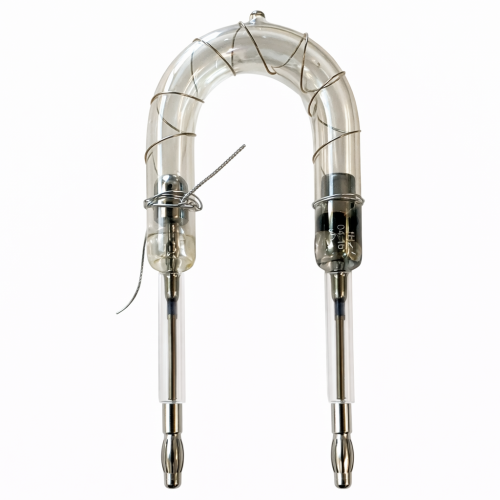

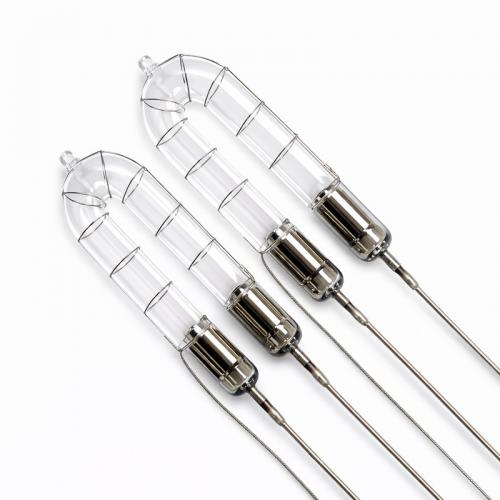

Global Xenon Flash Tube OEM Replacement Reference for Stroboscopes, Warning Beacons, IPL & Aviation Systems

Leveraging world-class industrial design and manufacturing excellence, we deliver high-quality Xenon Flash Tubes in versatile formats—including linear, U-shaped, spiral, and circular designs—engineered for precision, durability, and repeatable pulse output. These tubes power demanding systems such as stroboscopic instruments, traffic-violation cameras, airport runway lighting, and high-speed photography. Beyond industrial and safety use, our technology supports advanced applications in IPL hair removal, skin rejuvenation, and laser pumping, as well as scientific systems for solar simulation, sterilization, and color measurement. We supply global customers including research institutes, universities, and professional wholesalers. Engineering note: reliable replacement is not based on appearance. A correct match must align the trigger method and the verified energy / frequency / duty-cycle window. For integration and procurement sign-off, we can provide an engineer-reviewed parameter sheet plus a replacement checklist, and supporting components such as trigger coils, transformers, and capacitors.

Global OEM Replacement for Pulsed UV Disinfection, Medical Sterilization & Semiconductor Curing Systems Xenon Flash Tube

Leveraging world-class industrial design and manufacturing excellence, we specialize in high-quality Xenon Flash Tubes in versatile formats—including linear, U-shaped, spiral, and circular designs—engineered for precision, durability, and repeatable pulse output in demanding pulsed-light systems. On this page, the focus is pulsed UV disinfection, medical sterilization, and semiconductor curing systems, where reliability is defined by a verified operating window—not marketing claims. At the same time, our platform-level capability is proven across a wide range of mission-critical deployments, including stroboscopic instruments (measurement-grade repeatability), traffic-violation cameras (high repetition and long duty cycles), airport runway lighting (safety visibility under harsh conditions), and high-speed photography (fast trigger response and stable output). This broad coverage demonstrates that our tubes are engineered as a controlled pulsed light source—not a “flash once and hope” consumable. Procurement sign-off rule: do NOT replace xenon flash tubes by appearance. A valid replacement must match the trigger method and a verified energy / frequency / duty-cycle window. For engineering review, request the UV duty-cycle parameter PDF before program deployment. Proof Badges: 1100+ Hour Endurance Validation · Engineer-Reviewed Parameter Sheet (PDF) · OEM Replacement Checklist · Traceable Controlled Substitution

Global OEM Replacement for UV Reactor, Water Treatment & Germicidal Systems Xenon Flash Tube

SOWIN GXEC Xenon Flash Tube is engineered as a global OEM replacement reference for UV reactor water-treatment and germicidal systems, where performance is defined by repeatable pulse energy, stable ignition, and predictable lifetime under continuous operation—not by “similar shape” claims. In pulsed-UV water treatment, real reliability is a controlled window of trigger method, energy, repetition rate, and duty-cycle, coordinated with thermal management and lamp structure. This engineering boundary reduces hidden failure modes such as misfire, output drift, early blackening, and premature downtime that can silently degrade UV dose delivery. Our platform capability is proven across mission-critical pulsed-light deployments, including stroboscopic instruments (measurement repeatability), traffic-violation cameras (high repetition and long duty cycles), airport runway lighting (safety visibility in harsh environments), and high-speed photography (fast trigger response and stable output). This broad coverage demonstrates program-grade pulse control and manufacturing consistency. Procurement sign-off rule: do NOT replace xenon flash tubes by appearance. A valid replacement must match the trigger method and a verified energy / frequency / duty-cycle window. For engineering review, request the UV reactor duty-cycle parameter PDF before deployment. Proof Badges: 1100+ Hour Endurance Validation · Engineer-Reviewed Parameter Sheet (PDF) · OEM Replacement Checklist · Traceable Controlled Substitution

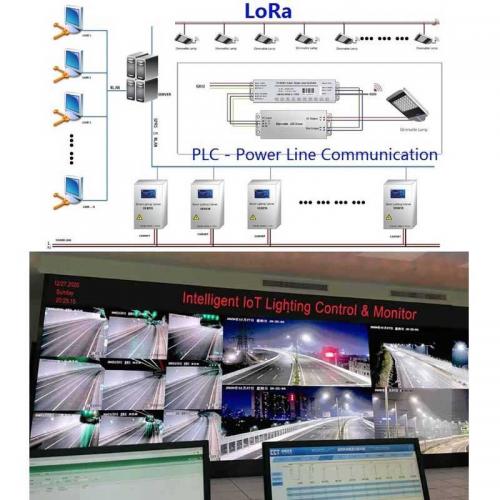

Enable Safer & Sustainable Cities with IoT Smart LED Street Lighting Solutions - Gateway play as a Nerve Center
