penerangan jalan otomatis pada sistem kontrol sensor mati

sesuai dengan lingkungan jalan/terowongan, bekerja sama dengan pengontrol terpusat pencahayaan cerdas untuk secara otomatis mengontrol pencahayaan lampu sesuai dengan perubahan kecerahan lingkungan, untuk mencapai tujuan manajemen dan kontrol cerdas.

Merek:
SOWIN
Pesanan (MOQ):
1
Pembayaran:
T/T
Asal produk:
China
Port Pengiriman:
Guang Zhou

Pertanyaan sekarang

Rincian produk

detail dari teknologi PLC & lora yang ditampilkan pada 93km lampu jalan tol lingkar luar shen zhen & grup lampu terowongan:

sensor pencahayaan

saya: peralatanI pengantar

itu sts -100 peralatan pemantauan cahaya lingkungan diteliti dan dikembangkan secara independen oleh perusahaan kami. sesuai dengan jalan/t lingkungan unnel , itu bekerja sama dengan pencahayaan cerdas terpusat pengontrol untuk secara otomatis mengontrol pencahayaan lampu sesuai dengan perubahan darie kecerahan lingkungan , untuk mencapai tujuan manajemen dan kontrol cerdas .

penerangan jalan tradisional, penerangan terowongan dan penerangan industri seperti sakelar penerangan pabrik & gudang, mode pengontrolan umumnya dibagi menjadi pengontrolan loop, pengontrolan matahari terbit & terbenam, pengontrol loop perlengkapan yang sesuai dalam periode waktu yang berbeda, a meskipun mengendalikan sudah matang dan banyak digunakan , masih banyak masalah , seperti:it bisa’ t secara otomatis menyesuaikan kecerahanat hujan, cuaca berpasir , rentang penyesuaian tetap (hanya sakelar loop) ; apalagi , tidak mungkin untuk mengetahui Sekelilingnya kecerahan situs proyek dalam waktue . sebagai tanggapan atas masalah ini, perusahaan kami meluncurkan luminance iniC pemilihanE peralatan. yang mengintegrasikan pengumpulan kecerahan, pemrosesan data, dan komunikasi data.

peralatan mengadopsi komunikasi LORA, terhubung dengan pengontrol terpusat kami untuk mencapai mobil-d sebentar lagi.

ii: spesifikasi listrik

barang		peringkat
tegangan kerja		AC 220v±20%
frekuensi kerja		50hz
statisP berutang		<10w
kisaran akuisisi cahaya (bila digunakan sebagai pengukur luminance)		0-5000cd/m²
pengukuranE kesalahan		1%
isolasi	l/n-pe	1.75kv
	l/n-dim	3.5kv
lonjakan listrik l-n L-PE n-pe）		±4kv
statisE listrik		±8kv
suhu kerja		-25℃~ +60
maks.O bekerjaT suhu		-40℃~ +70
penyimpanan danT transportasiT empt.		-40℃~ +70
penyimpanan& kisaran kelembaban kerja		85%

iii: fitur utama:

1. kecerahanC pemilihanF pemberian minyak suci

menggunakan sensor fotolistrik presisi tinggi industri, set lengkap lensa, filter, aperture dan perangkat lainnya, untuk mengumpulkan lingkungan memantulkan cahaya , melalui unit kalkulasi data berkecepatan tinggi internal , sesuai dengan algoritme untuk konversi data , menggunakan mekanisme toleransi kesalahan yang unik untuk memastikan data yang lancar dan efektif , untuk memastikan akurat dan efektif perolehan kecerahan optik.

2. fungsi komunikasi

menggunakan mode komunikasi LORA, jaraknya bisa mencapai 1000 meter. kabel gratis, nyaman untuk konstruksi.

itu dapat diatur sebagai pelaporan aktif atau jenis komunikasi polling.

I v: memasang dimensi

1. ukuran

2. diagram braket pemasangan standar

3. diagram braket pemasangan multi-fungsi opsional

Tinggalkan pesan

Jika Anda tertarik dengan produk kami dan ingin mengetahui lebih detail, silakan tinggalkan pesan di sini, kami akan membalas Anda sesegera mungkin.

Tag terkait. :

Produk-produk terkait

CCT Sensor for Warm White and Nature White

The Street Light CCT Sensor aims at the using environment of street lighting, tunnels etc., through the abnormal changing ambient, the lighting fixtures are automatically controlled according to programming to realize intelligent lighting management. Traditional street lightings, tunnels, factories lighting fixtures are mostly controlled by personnel inspection or regular control, which initially meets the needs of the scene, but still cannot achieve the effect of intelligent control. For example: Turn on or dimming to brighter when people is coming, and turn lights off when people go away; No matter which direction the person enters from, the lamps in the area will automatically light up or increase according to the setting; this equipment cooperates with the intelligent lamps to solve these problemsperfectly. It adopts the most advanced and popular LoRa wireless communication technology, the communication distance can reach 3 kilometers without repeater, and the actual measurement reach 1 kilometers, and the communication distance is adjustable.

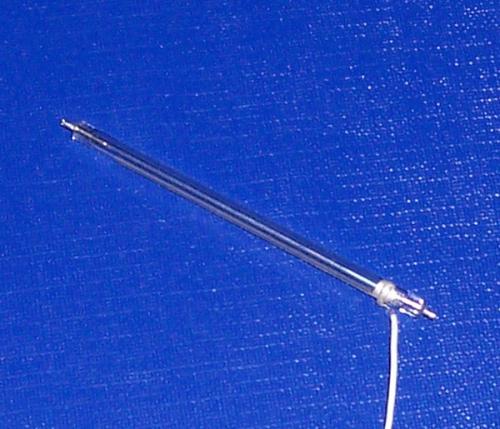

Xenon Flash Tube for Textile, Film and Web Inspection Stroboscopes with Visual Defect Control
